 IR9000SW:
IrDA-1.1 (9.6K-4M bps) System Test Software - Effective QC, Engineering diagnostic and efficient production-line IrDA test tool.
- Adjustable packet size, # of packets, speeds, test patterns and send/receive/2-way.
- Works well with embedded portable IrDA-FIR devices as well as notebook PC.
- Displays error rate of send, receive at each IR speed and DUT's IAS resource.
- Works with ACTiSYS FIR add-on board and adapter, IR2000B/L.

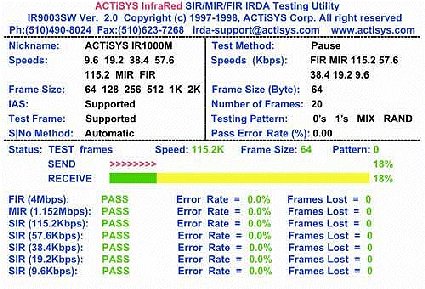

IR9003SW:
IrDA-1.1 (9.6K-4M bps) System Test Software - Same as IR9000SW for IrDA-1.1 (9.6K-4Mbps) system or component testing.
- Utilizes the efficient loop-test Test Frames facility already in IrDA Protocol Spec.
- Ideal for testing digital camera, pager, smart phone, printer, medical device.
- Works with ACTiSYS IrDA IR2000B/L IrDA adapter on the reference station.
IR2000B:
IrDA ISA-BUS Add-On Card - Plugs into any desktop PC motherboard.
- Gives you the full IrDA speeds from 9.6K to 4M bps.
IR2000L:
IrDA motherboard Adapter - Plugs easily into IrDA-FIR ready desktop PC motherboard or IR2000B
- Gives you the full IrDA speeds from 9.6K to 4M bps.
IR3200M:
Hand-Held IrDA System Tester (9.6K - 4M bps) - Pocket size, 4 AA battery operated. Test status indicated by LED's or audio.
- Replaces desktop PC, IR2000B/L to test FIR/MIR/SIR of various DUT's.
- Connecting it to the notebook COM Port, facing the FIR window to do simple loop test!
- To easily test IrDA-enabled PDA, smart cell phone, data terminal, printer, sub notebook, etc.
- Using a fixture driven by the second IR3200M, you can test IrDA transceiver modules!
| * | One button operation to test both IrDA hardware
and Test Frames: | - Media busy condition.
- Discovery procedure.
- Connections at all the data rates supported.
- IAS inquiries of Device Name and IrLMP support.
- Verify Test Frames if the DUT IrLAP supports it
- Disconnect, go back to Normal Contention Mode and re-connect.
| * | Customize test program, or control and display test in progress interactively by connecting IR3200M to the PC COM Port. | | * | Customized test program can be stored in flash ROM inside the unit. | | * | Specifications: |
- 3.58"L x 3.75"W x 1.25"H / 6.6 oz. Active power: 158mA, Sleep: 84mA, Power down: 11mA. Vcc: 3.3V USB type B connector. Optional AC adapter.
| * | Also available separately from ACTiSYS: | - PC software to configure and customize IrDA test program.
- PC software to control IR3200M interactively.
- FIR Driver support for many IrDA notebook models.
- Simplified IrDA stacks for various embedded device.
|
ACT-IR2000B/L FIR Add-on Card
ACT-IR3200M Handheld Tester
Notebook FIR Loop Test
Testing Transceiver Modules
Testing Embedded DUTs |
